Valued at $4.3 billion, the worldwide China clay market is expected to rise to $5.7 billion by 2028. This significant increase emphasizes how much knowledge of these resources is absolutely vital.
Many times, manufacturers in different sectors find it difficult to distinguish between different varieties of china clay, which results in less-than-ideal materials. This uncertainty can lead to manufacturing inefficiencies and quality problems, therefore influencing the bottom line.
Being professionals, we understand the difficulties in choosing the appropriate china clay mineral for particular needs. We know the pressure to make wise judgments, particularly considering the notable expansion of the market.
This blog will offer a thorough comparison of calcined china clay mineral and china clay to help to allay these issues.
Overview of the Different Clay Varieties
Various forms of clay and their features are investigated in this overview of clay varieties.
Natural occurring minerals created by weathering and rock breakdown are clays. Their special qualities make them worthwhile for use in manufacturing. Common variations of clay are overviewed here including ball clay, bentonite, and kaolin.
- Kaolin: Fine-grained white clay used in the manufacturing of paper and ceramics
- Bentonite: Highly absorbent swelling-oriented clay
- Ball clay: Sanitaryware and ceramic bodies’ plastic clay
Every kind of clay has unique qualities that define its fit for particular purposes. Knowing these variances facilitates the choice of clay for different uses. One should contact leading China clay powder suppliers to know about the most suitable clay variety for their usage.
Key Differences Between China Clay and Calcined China Clay
Essential resources in many different sectors are China clay and calcined china clay. Their unique qualities fit for several uses and procedures. Choosing the correct material for particular needs depends on an awareness of these variations.
The main variations between calcined and china clay are these ones.
Composition and Structure
China clay and calcined china clay differ significantly in their composition and structure. These differences impact their properties and applications in various industries.

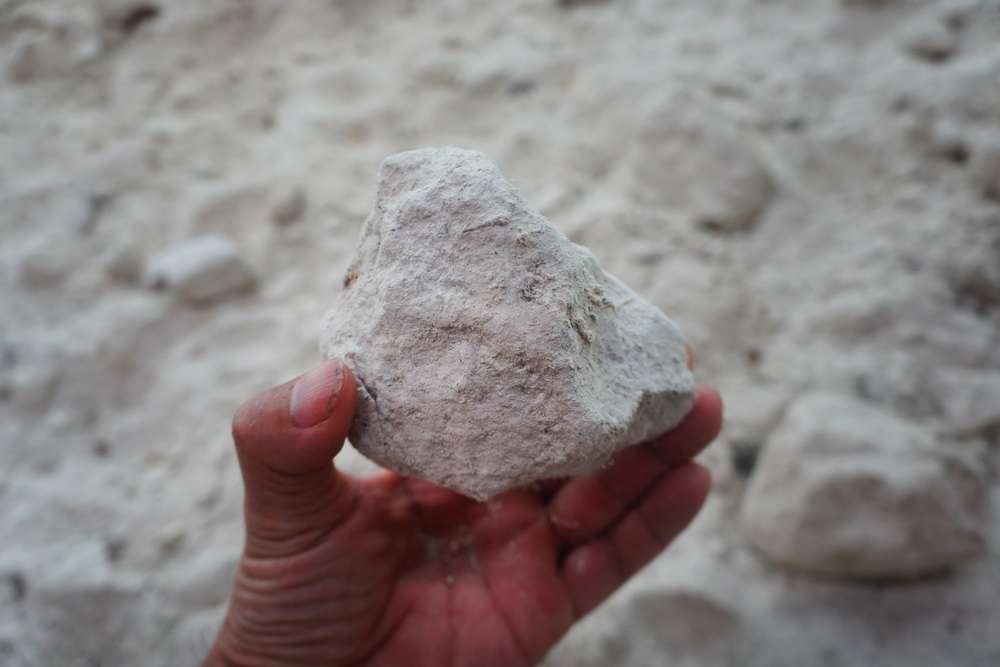

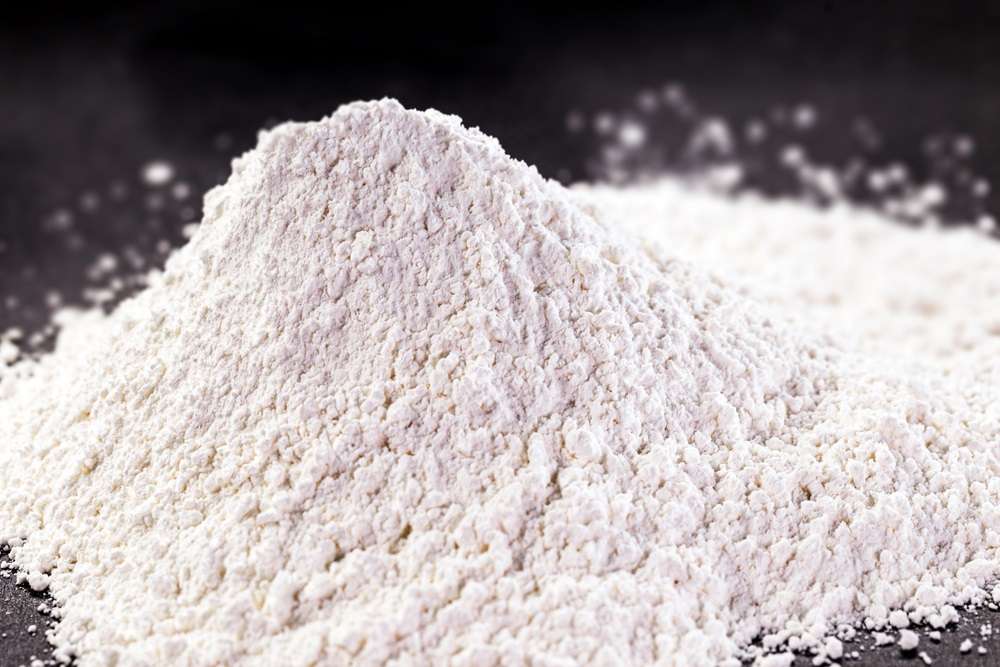

China clay, sometimes called kaolin, is a hydrated aluminum silicate mineral. It includes several types of kaolinite with silica and alumina layered arrangement. High temperature heating of kaolin produces calcined china clay.
- China clay: Soft, white, and plastic when wet
- Calcined china clay: Hard, less plastic, and more refractory
- The heating process alters crystal structure and removes hydroxyl groups
The calcination process alters China clay’s physical and chemical qualities. This change influences the behavior of the material in several uses and production techniques.
Physical Properties
The physical properties of china clay and calcined china clay vary significantly. These differences affect their behavior and applications in various industries.
Mixed with water, China clay shows great flexibility and is soft and finely grained. Its texture is smooth, and it ranges from white or off-white. Excellent dispersibility in aqueous solutions is well-known in China clay powder.
- China clay: High plasticity, low abrasiveness, good opacity
- Calcined china clay: Lower plasticity, increased hardness, higher refractoriness
- Calcination reduces specific surface area and increases particle size
Calcined china clay has a more porous structure and improved chemical stability. Its altered physical properties make it suitable for different applications than raw china clay.
Chemical Reactivity
China clay has a higher chemical reactivity due to its hydroxyl groups. It readily interacts with water and organic compounds, forming stable suspensions. Calcined China clay exhibits lower chemical reactivity due to its altered structure.
- China clay: More susceptible to chemical modifications and surface treatments
- Calcined china clay: Increased resistance to acids and alkaline solutions
- Calcination reduces the number of active sites for chemical reactions
The reduced chemical reactivity of calcined china clay enhances its stability. This property makes it suitable for applications requiring resistance to harsh chemical environments.
Water Absorption and Plasticity
China clay exhibits high water absorption and excellent plasticity when mixed with water.
- China clay: High water absorption, excellent plasticity, forms stable suspensions
- Calcined china clay: Lower water absorption, reduced plasticity, less cohesive
- Calcination alters the clay’s ability to interact with water molecules
The difference in water absorption impacts the material’s suitability for specific applications in ceramics and other industries.
Thermal Properties
These characteristics influence their behavior under high-temperature conditions and heat-related applications.
China clay undergoes significant changes when exposed to high temperatures. It loses water and undergoes structural transformations, affecting its properties. Calcined China clay has already undergone these changes, resulting in different thermal behavior.
- China clay: Lower thermal stability and undergoes phase changes during heating.
- Calcined china clay: Higher thermal stability, improved refractoriness
This characteristic is valuable in industries requiring heat-resistant materials.
Industrial Applications
China clay and calcined china clay have distinct industrial applications due to their unique properties. Their differences make them suitable for specific uses across various sectors.
Uses of China clay powder include paper coating, ceramics production, and cosmetics manufacturing. Its high plasticity and fine particle size make it valuable in these industries. Calcined China clay finds applications in refractory materials, specialty ceramics, and catalysts.
- China clay: Paper industry, porcelain production, filler in plastics
- Calcined china clay: High-temperature applications, advanced ceramics, paints
- Both materials are used in different grades for specific purposes
Choosing Between China Clay and Calcined China Clay
Selecting between china clay and calcined china clay depends on specific application requirements. Understanding their unique properties helps in making the right choice for industrial processes.
China clay is preferred for applications requiring high plasticity and water absorption. It excels in industries such as paper coating and ceramics manufacturing. Calcined china clay is chosen for its improved thermal stability and chemical resistance.
- China clay: Ideal for applications needing high opacity and smooth texture
- Calcined china clay: Suitable for high-temperature and chemical-resistant applications
- Cost considerations may influence the choice between the two materials
The decision should be based on the desired end-product characteristics. Uses of China clay powder and calcined china clay vary across industries, affecting the selection process.
| Property | China Clay | Calcined China Clay |
| Plasticity | High | Low |
| Water Absorption | High | Low |
| Thermal Stability | Lower | Higher |
| Chemical Resistance | Lower | Higher |
| Specific Surface Area | Higher | Lower |
| Main Applications | Paper coating, ceramics | Refractories, specialty ceramics |
Conclusion
China clay and calcined china clay each offer unique properties for various industrial applications. This comparison highlights their differences and helps in selecting the right material.
The choice between these materials depends on specific application requirements. China clay powder excels in applications needing high plasticity and water absorption. Calcined china clay offers superior thermal stability and chemical resistance for specialized uses.
The Sharad Group, with over 60 years of expertise, provides top-tier mineral solutions. As a leading mineral mining company, we offer:
- Eco-friendly production processes minimize environmental impact
- Advanced technology ensures product consistency and quality
- Global delivery network for timely and efficient supply
Frequently Asked Questions (FAQ)
Q1. What is the primary difference between china clay and calcined china clay?
Major physical and chemical characteristics define most major differences. China clay is hydrated aluminum silicate; calcined china clay is subjected to high temperatures. This procedure changes its structure, therefore lowering plasticity and raising thermal stability.
Q2. How does calcination affect the properties of china clay?
Calcination significantly changes china clay’s characteristics:
- Reduces water content and plasticity
- Increases hardness and chemical resistance
- Improves thermal stability and refractoriness
Q3. Which industries benefit most from using calcined china clay?
Industries requiring heat-resistant and chemically stable materials benefit from calcined china clay. These include:
- Refractory manufacturing
- Advanced ceramics production
- Specialty paints and coatings
Q4. Can calcined china clay be used in all applications where regular china clay is used?
No, calcined china clay cannot replace regular china clay in all applications. Its altered properties make it unsuitable for uses requiring high plasticity. Regular china clay remains preferred in industries like paper coating and traditional ceramics.
Both materials play crucial roles in various industries, each excelling in its specific uses.
