Glass manufacturing needs precise materials for quality production output. Modern glassmakers face difficulties with raw material consistency and purity levels. Industries struggle to maintain quality standards while being able to effectively manage the cost of production.
As material sourcing professionals, we understand the hassles of experiencing inconsistent batch results! It is hard to get reliable silica sand manufacturers with consistent quality. Plus, specification divergence between different applications of glass can increase the complexity of the process of maintaining batch consistency.
High-quality silica sand is the basis for the production of strong, crystal glass products. We detail how silica sand is applied to glass production, processing, quality demands, and industrial applications in this blog.
What is the Importance of Silica Sand for Glass Manufacturing?
Silica is the primary raw material that is utilized to produce glass in numerous industrial uses. The unique molecular structure provides a clear appearance, which we identify with glass products. Glassmakers utilize high-purity sources to create the optimal possible clarity in the end product.
Major benefits of using silica sand for glass manufacturing include:
- Temperature resistance that allows it to withstand variations in high heat
- Chemical stability that will not permit undesirable reactions throughout the manufacturing process
- Better optical properties for better transmission of light
- Cost-effectiveness compared to other base materials
- Glass composition usually consists of 70% silica sand, and hence, it is the main ingredient in most recipes.
What Factors Should You Consider While Selecting Silica Sand for Glass Manufacturing?
Glass manufacturers must maintain quality in the selection of raw materials used in the manufacturing process. The chemical composition and physical properties directly influence the quality of the end product glass. These are the essential factors to monitor while selecting silica sand for manufacturing glass.
Purity Grades
Silicon dioxide levels above 99.5% guarantee maximum glass clarity and strength. Iron oxide contamination may introduce undesirable coloration to the final product. Specialty grades for glass manufacturing applications are offered by most silica sand manufacturers.
- More purity is costly but offers improved optical performance
- Chemical analysis certificates effectively authenticate silica content and levels of impurities
Particle Size Distribution
Uniform particle size distribution ensures consistent melting during manufacture. Sand particles are typically 0.1-0.5mm for typical glass manufacturing requirements.
- Faster melting particles, but with greater potential for defects
- Screening devices classify particles to provide production quality levels
Source Selection
Geological origin plays an important role in mineral composition and performance qualities. Working with quality silica sand suppliers provides guarantees of consistent quality and technical support.
- The location of the quarry typically dictates the natural chemical content of silica sand
- Supply long-term contracts guarantee product composition stability through all production batches
Manufacturing Process of Glass Products Using Silica Sand
Glass creation transforms basic minerals into versatile products through sophisticated industrial processes. Modern manufacturing facilities implement precise control systems throughout each production phase. The journey from raw materials to finished products involves several critical stages.
Raw Material Preparation
The process begins with careful weighing and mixing of batch ingredients. Silica sand constitutes approximately 70% of the glass batch composition ratio.
- Proper storage prevents contamination that could compromise product quality
- Computer-controlled systems ensure precise recipe formulations for consistent results

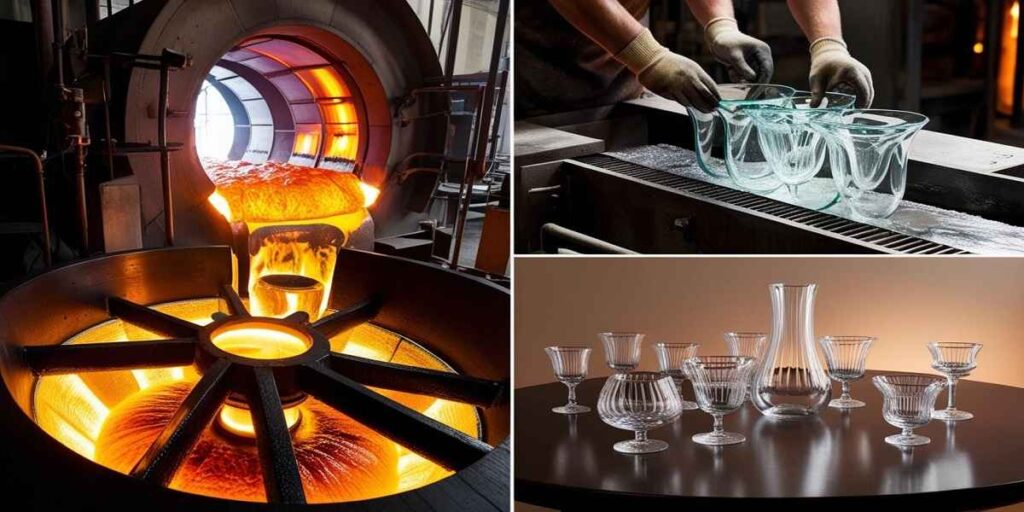

Melting and Formation
Furnaces reach temperatures exceeding 1500°C to transform raw materials into molten glass. The primary silica sand uses include forming the amorphous structure that gives glass its properties.
- Refining removes gas bubbles through chemical and thermal processes
- Homogenization ensures uniform composition throughout the glass melt
Float Glass Production
Molten glass flows onto a bed of molten tin, creating perfectly flat surfaces. Working with reliable silica sand suppliers ensures consistent quality in the float process.
- Controlled cooling creates stress-free glass of uniform thickness
- Automated cutting systems trim sheets to precise dimensional specifications
Material Handling and Storage
Raw silica sand requires specialized equipment to prevent contamination during transport. Storage facilities maintain consistent humidity levels to prevent material degradation.
- Silos separate different grades based on specific application requirements
- Just-in-time delivery systems optimize inventory management and production scheduling
Quality Control During Production
Continuous monitoring ensures adherence to tight manufacturing specifications and tolerances. The silica sand for glass manufacturing undergoes rigorous testing before entering production.
- Optical scanners detect imperfections invisible to human inspection
- Statistical process control identifies variations before they affect production runs
Which are the Major Types of Glass Products Made Using Silica Sand?
Glass manufacturing transforms raw materials into diverse products serving countless industries worldwide. The transformation process depends on precise formulations tailored to specific applications. Each glass type requires specialized manufacturing techniques to achieve the desired properties.
1. Flat Glass Products
The float glass technology relies considerably on the construction and automotive industries. The most common uses of silica sand in this industry are windshields, facades, and windows. Flat glass silica sand prioritizes optical purity and strength.
- Architectural glass employs coatings for energy efficiency and solar control
- Tempered safety glass shatters into small, harmless pieces upon breakage
2. Container Glass
Bottles and jars are the containers that dominate the world container glass market. Food containment demands stringent quality tests during production.
- The shade is achieved by using some mineral additives during batch processing
- Energy requirements and raw materials are minimized with recycled cullet
3. Technical Glass
Special chemical glass for precision is required for laboratory tools. Most of the silica sand manufacturers specialize in producing ultra-pure products for this industry.
- Borosilicate glasses offer increased thermal shock resistance for laboratory applications
- Precision tubing is the basis of medical devices and scientific instruments
4. Specialty Glass
Optical applications require the highest level of clarity and proper refractive properties. The most effective producers have strict quality control for such advanced products.
- Lens-grade glass is annealed extensively to eliminate internal stresses
- Optimized light transmission formulations for photovoltaic application
5. Value-Added Products
Laminated safety glass consists of several layers with polymer interlayers in between. The uses of silica sand stretch to the formation of base materials for such composite products.
- Impact-resistant designs are force entry and weather condition-resistant
- Sound-reducing interlayers reduce noise transmission through building envelopes
6. Specialized Applications
Electronic displays use ultra-thin glass substrates with carefully controlled properties. Some silica sand manufacturers are focused on materials designed for display technology.
- Touch screens require perfectly level, blemish-free glass surfaces
- Fiber optic production requires very high material purity for signal transmission
7. Solar Glass
Photovoltaic panels can optimize their energy conversion efficiency by using high-transmission glass. For applications involving renewable energy, this specialty glass combines remarkable light transmission qualities with durability.
- Low-iron compositions decrease light absorption to boost solar transmittance.
- Performance is improved with anti-reflective coatings, which reduce losses from sunlight reflection.
Silica Sand is the Cornerstone of Glass Manufacturing Excellence
Glass manufacturing is changing with technology and green policies. Raw material selection determines product quality and production efficiency. Manufacturing processes and material properties are interrelated and lead to innovation in the industry.
Good business relationships with competent silica sand suppliers create competitive advantages for glassmakers worldwide. Research is always ongoing to investigate the minimization of energy consumption in production.
Key industry trends include:
- Greater use of reclaimed material reduces the use of virgin raw materials.
- Greater automation that maximizes consistency and reduces human error
- Smart factory integration for real-time quality monitoring
- Tailor-made compositions to meet emerging building and motor needs
Silica sand’s versatility enables manufacturers to make products from humble containers to sophisticated optical components. Modern glass manufacture is the perfect blend of age-old skill and high-tech equipment.
FAQ
1. What is the use of silica sand in the glass industry?
Silica sand serves as the primary raw material in glass manufacturing, comprising 70-74% of most glass formulations. It provides the necessary silicon dioxide that forms the amorphous network structure of glass.
High-purity silica sand creates transparent, durable products with excellent optical properties. Glass manufacturers use silica sand across various applications, including flat glass for construction, container glass for packaging, and specialty glass for electronics and optics.
2. How to make glass with silica sand?
Here is the process of making glass with silica sand:
- Glass production begins by mixing silica sand with other raw materials like soda ash, limestone, and cullet (recycled glass).
- This batch mixture is heated in furnaces at temperatures exceeding 1500°C, where the silica sand melts and transforms into a viscous liquid.
- The molten glass is then formed through various methods—floating on molten tin for flat glass, molding for containers, or drawing for fibers.
- Controlled cooling follows to prevent stresses from developing.
- Final processing includes cutting, tempering, coating, or laminating depending on the intended application.
3. What is the purpose of silica in glass?
Silica provides the fundamental structure of glass by creating a random network of silicon-oxygen tetrahedra. This structure gives glass its characteristic properties including transparency, hardness, and chemical stability. Silica’s high melting point contributes to glass’s thermal resistance.
Its amorphous (non-crystalline) arrangement after cooling allows light to pass through without scattering, creating transparency. Silica also provides chemical durability, enabling glass to resist weathering, water, and most chemicals, making it ideal for containers and building materials.
